Three-axis CNC spark machine CNC341S-Electric discharge machine-群基精密工业（苏州）有限公司

< >

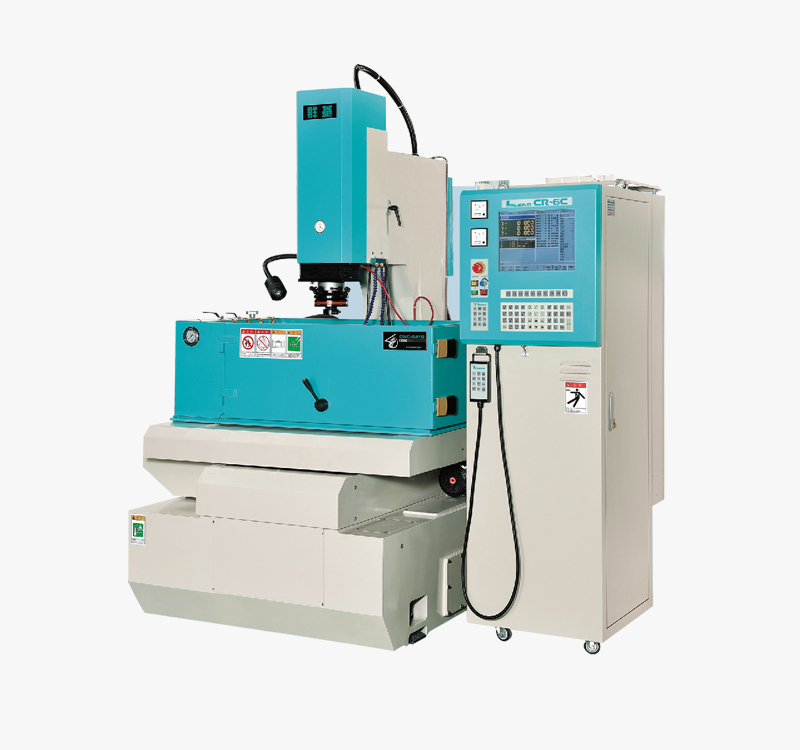

Three-axis CNC spark machine CNC341S

Using FC-35 castings, the material is precise, tough, tempered and natural weathered, durable and not easily deformed.
The work surface has undergone high-frequency heat treatment and precision

免费咨询返回列表

产品详情

Three-axis CNC spark machine CNC341S

Three axis adopts Panasonic AC servo AC motor

CNC Electric Discharge Machine CNC341S Specification
CNC341S（mechanical）		CR6C（Electrical appliances）
XYZstroke	400300200	Power Specifications	50A（7KVA）
Machine head stroke	240mm	Processing voltage	100V（140\250）
working desk size	650*400	Minimum rest\discharge time	1us\1us
Maximum electrode weight	75kg	Processing speed	480 mm3\min
Maximum workpiece weight	1000kg	Surface finish	0.2umRa
Machine size	121013002150	Electrode consumption ratio	0.3%
Machine weight	1950kg	Electric control cabinet weight	210kg
