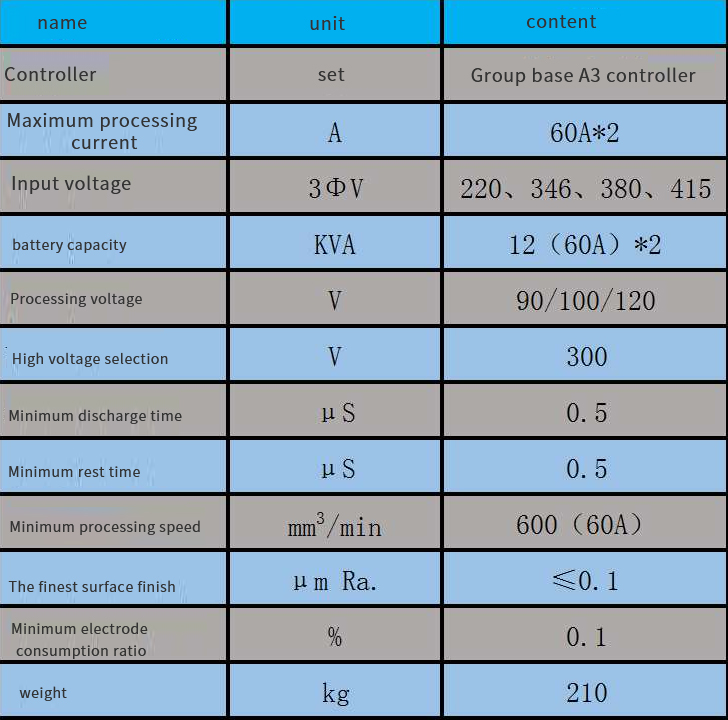

Electrical characteristics:

1. Controller:

Using industrial-grade low-power motherboard controller, VLSI ultra-large integrated circuit design, LINUX operating system, stable performance.

2. Support industry 4.0 communication protocol:

I/O interface control adopts EtherCAT Industry 4.0 communication protocol, supports remote diagnosis, monitoring and debugging (optional function)

3. Touch display panel:

Multi-function quick click operation, touch and keyboard functions as you like.

4. Support USB and network communication functions:

The program can be copied and copied via USB or network, which is convenient for operation and use

5. Use absolute Panasonic servo drive:

The servo drive uses an absolute control system, which is free from reset to zero after starting up, making it easier to use

6. The all-Chinese operating system is simple and concise, easy to learn and get started quickly:

Supports multiple shaking and path processing, multiple slag discharge methods and processing procedures, multiple sets of working coordinates, multiple depth tables, various automatic centering/edge seeking, support for edge-seeking ball operations, multiple processing parameters, power-off coordinates Memory..., the most complete function, suitable for all kinds of simple/complex/multi-mold/multi-cavity/deep hole...all kinds of mold processing

7. NC programming is compatible with some imported brands:

General-purpose NC programming system, more optimized functions, easy to use

9. Wide range of electrode and mold processing capabilities:

Deep hole, mirror, connector, cemented carbide, powder metallurgy, graphite electrode..., various electrodes, mold processing capabilities.

10. Newly designed mirror processing circuit:

PEAK mirror surface processing circuit, the surface effect of mirror surface processing is better, the speed is faster, the surface roughness ≤ Ra 0.1 µm

Mechanical characteristics:

1. High rigidity casting body:

The XY-axis cross seat structure effectively controls the XY-axis motion balance, which makes the processing accuracy of shaking and reaming higher and more stable; the center of gravity of the chassis is more stable to ensure the stability of the processing accuracy; it is made of FC30 castings, and has undergone aging treatment, and the surface hardness of the table Reach HRC 45 degrees or more.

2. Brand new filtration system

Standard high-density filter, the spark oil filtering effect is better, the filter element replacement and maintenance are easier.

3. High-rigidity transmission structure design, effectively reducing the hot elongation and deformation of the screw rod:

The three-axis precision ball screw can effectively reduce the overall backlash, ensure the accuracy of the servo drive, and can bear the great gravity acceleration generated in the electrical discharge machining, while effectively reducing the thermal elongation and deformation of the screw, and allowing the screw and bearing to be used Longer life, improved processing performance and processing accuracy, three-axis adopts Japanese Panasonic AC servo motor, the whole series of models are laser-calibrated to ensure the positioning accuracy of the whole stroke.
